The roller linear guide assembly is to place proper steel ball between slide and guide to make slide friction between slide and guide change into rolling with less static friction difference and good follow-up, that is the lagging interval between drive signal and mechanical action is very short, which is beneficial to improving response speed and sensitivity of NC system.

Type

Dimension of Assembly

Dimension of Slide carriage

Dimension of Guide rail

H

W

W2

E

L

B×J

MQ×l

L1

Oil Hole

T1

N

W1

H1

F

d×D×h

LMAE15B

28

34

9.5

4.6

66

26×26

M4×6.4

40

Ф3

8.3

5

15

14

60

4.5×7.5×5.3

LMAE20B

30

44

12

5

77.8

32×36

M5×8

48.8

M6×1

7

6.5

20

18

60

6×9.5×8.5

LMAE20BL

92.4

32×50

63.4

LMAE25B

40

48

12.5

7

88

35×35

M6×9.6

57

M6×1

11.8

6.5

23

22

60

7×11×9

LMAE25BL

110.1

35×50

79.1

LMAE30B

45

60

16

9

109

40×40

M8×12.8

72

M6×1

10

6.5

28

26

80

9×14×12

LMAE30BL

131.3

40×60

94.3

LMAE35B

55

70

18

9.5

119

50×50

M8×12.8

80

M6×1

15

6.5

34

29

80

9×14×12

LMAE35BL

144.8

50×72

105.8

LMAE45B

70

86

20.5

14

148.2

60×60

M10×16

105

M8×1

18

13

45

38

105

14×20×17

LMAE45BL

173

60×80

129.8

LMAE55B

80

100

23.5

15

170

75×75

M12×19

121

M8×1

20

13

53

44

120

16×23×20

LMAE55BL

205.1

75×95

156.1

Type

Reference(mm)

Basic Load(kgf)

Allowable Static Moment(kgfxm)

Weight

Lmax

G

Rated Dynamic Load(c)

Rated Static Load(co)

Mx

My

Mz

Slide(kgf)

Guide Rail(kgf/m)

LMAE15B

4000

20

850

1650

10

8

8

0.21

1.4

LMAE20B

4000

20

1450

2560

22

18

18

0.31

2.6

LMAE20BL

1900

3330

28.6

23.4

23.4

0.47

LMAE25B

4000

20

2140

4000

36

32

31

0.45

3.6

LMAE25BL

2996

5600

50.4

44.8

43.4

0.56

LMAE30B

4000

20

2980

5490

60

50

49

0.91

5.2

LMAE30BL

3900

7190

78.5

65

65

1.2

LMAE35B

4000

20

3960

7010

96

75

73

1.5

7.2

LMAE35BL

5230

9270

125

95

95

1.9

LMAE45B

4000

22.5

6740

12100

216

170

168

2.3

12.3

LMAE45BL

8330

14950

267

210

210

2.8

LMAE55B

4000

30

9940

17100

367

293

288

3.9

16.9

LMAE55BL

12820

22060

473

380

375

5

Item/Accuracy Grade

Normal Grade
（N）

High Grade（H）

Precise Grad（P）

Super-precise
Grade（SP）

Ultra-precise Grade（UP）

Allowable Height Error
（H）

±0.1

±0.04

0
-0.04

0
-0.02

0
-0.01

Allowable Width Error
（W）

±0.1

±0.04

0
-0.04

0
-0.02

0
-0.01

Relative Error of Double Height（△H）

0.03

0.02

0.01

0.005

0.003

Relative Error of Double Width（△W）

0.03

0.02

0.01

0.005

0.003

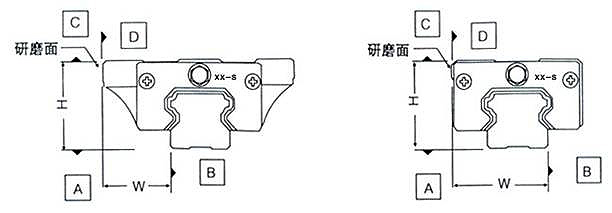

Travel Parallelism of Slide Carriage C facing to Surface A

△C　Reference Figure 3-1

Travel Parallelism of Slide Carriage D facing to Surface B

△D Reference Figure 3-1

If there is any question on design of linear guider rail and block with square type ( without flange). Welcome to contact us.
